Welcome to the AQ Pluss Motors webpage
The web where is possible to find special solutions and electric motors which work on a high temperature ambient.
Electric motors which work on a high temperature ambient.
There is always an appropriate electric motor to work on a hight temperature ambient.
In the pictures below is it possible to compare the different electric motors, including triphasic motors, single phase motors, with helical gear or straight gear transmission.
For any more questions or information about high temperature motors don’t hesitate to contact us, we will do our best to help you.
HTM english language
Here you will find the right HTM electric motor for your new projects.
YOU JUST NEED AQ PLUSS MOTOREN
Here we are going to analyse the 7 different models
of electric motors.
The B3 model with fixation foots,
the B5 Model with holed flange and
the B14 model with screwed holes flange.
Also, we will see 3 different models produced by mixing these previous models.
We start analysing the B3 motor model with foot fixations of the STD IEC serial.
Through its mechanical explanations we are going to see its different specifications
B3 motor with foot fixations (Foot mounted).
This motor has 2 foot fixations. It’s possible also to find it with 4 foots. It has at least 4 anchorage points, sometimes it could have 6, but this is not normal.
It is screwed with 4 screws or bolts and fixed nuts.
It’s possible to screw them directly on the surface or on rails. This rails have special bolts to its fixation.
Data sheet
IEC 56 B3 mounted foot motor
The Energy,
your Power to 50 Hz
2 poles about 2800 rpm
4 poles about 1400 rpm
The Energy,
your Power to 60 Hz
2 poles about 3360 rpm
4 poles about 1680 rpm
You looking for, you find it
Design
Name
Size
Category
IEC Position
Resaemblance
Color
Dimensions
Front Foots
Lateral Foots
Dimensions
Exterior Flange
Circular Flange
Flange Centre Edge
Holes in the Flange
Shaft / Axle height
Dimensions Shaft
Special Features
Alternative Name
Power 2 poles
Power 4 poles
Warning
More Information ... Link
HTM Three Phase Electric Motor
B3 Motor with Foot Fixation
CAM 56A
56, IEC 56
STD IEC Motors
smallest Electric Motor
V5 and V6
RAL 9006 (dark black)
90 mm between axle holes
71 mm between axle holes
without
without
without
without
56 mm
9 mm d x 20 mm long
The mostly Design of Electric motors
Industrial Electric Motors
0,09 KW about. 2800 rpm
0,06 KW about 1400 rpm
Two Phases the E Motor is running, that the motor to dies
For more information click here
IEC 56 B3 motor with foot fixations, as example of the smallest standard motor.
This motor IEC 56, the smallest one standardized, would be able to power a little electric railway.
However, an electric tension of 400 V is not appropriate for them.
The assembly of this electric motors needs a smooth surface or straight fixed rails.
If this surface is not well levelled is possible that the foots break.
Is possible to break the foot fixations while the screws are tightened, that should be done carefully or the damaged foot should be replace.
For special questions about your motors, don’t hesitate to ask us.
For More information click the Button please.
Holed flange B5 design (Flange mounted the Flange with the big ring)
Here we are going to describe the model with holed flange B5 of the IEC motor serial.
Through its mechanical explanation we are going to see its different options.
Data sheet
EC 56 B5 holed flange motor
The Energy,
your Power to 50 Hz
2 poles about 2800 rpm
4 poles about 1400 rpm
The Energy,
your Power to 60 Hz
2 poles about 3360 rpm
4 poles about 1680 rpm
You looking for, you find it
Design
Name
Size
Category
IEC Position
Resemblance
Color
Dimensions
Front Foots
Lateral Foots
Dimensions
Exterior Flange
Circular Flange
Flange Centre Edge
Holes in the Flange
Shaft / Axle height
Dimensions Shaft
Special Features
Alternative Name
Power 2 poles
Power 4 poles
Warning
More Information ... Link
HTM Three Phase Electric Motor
B5 Motor with Flange Fixation
CAM 56A
56, IEC 56
STD IEC Motors
smallest Electric Motor
V1 and V3
RAL 9006 (dark black)
without
without
120 mm
100 mm
80 mm
7 mm
56 mm
9 mm d x 20 mm long
Flange with a big ring
Industrial electric motor
0,09 KW about 280 rpm
0,06 KW about 1400 rpm
Two Phases the E Motor is running, that the motor to dies
For more information click here
IEC 56 motor with holed flange B5, as example of the smallest normalized motor.
This motor IEC 56 is the smaller normalized motor, useful for little applications. Not always is it needed a high performance of the motor.
It works with 400/230 V tension. (single-phase, lighting current).
The assembly of this motor needs a smooth surface. Is it possible to close the flange through a surface seal. The axle has an STD seal, watch out if it should be oil-hermetic. Is it needed indicate which kind of seal is used when you look for a replacement motor.
The B5 flanged can be change with the B14 flange, the difference between both is that the B14 flange is less stiff.
For More information click the Button please.
For special questions about your motors, don’t hesitate to ask us.

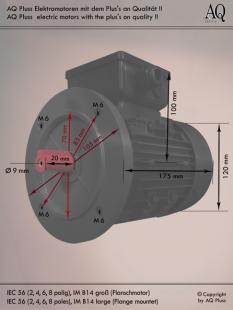

Big flange B14b Motor design (Flange mounted B14big)
Here we are going to describe the big flange B14 motor of the IEC motor serial.
Through its mechanical explanation, we are going to see its different options.
Data sheet
EC 56 B14big flange motor
The Energy,
your Power to 50 Hz
2 poles about 2800 rpm
4 poles about 1400 rpm
The Energy,
your Power to 60 Hz
2 poles about 3360 rpm
4 poles about 1680 rpm
You looking for, you find it
Design
Name
Size
Category
IEC Position
Resemblance
Color
Dimensions
Front Foots
Lateral Foots
Dimensions
Exterior Flange
Circular Flange
Flange Centre Edge
Holes in the Flange
Shaft / Axle height
Dimensions Shaft
Special Features
Alternative Name
Power 2 poles
Power 4 poles
Warning
More Information
HTM Three Phase Electric Motor
B14 (big, electric motor with Flange Fixation
CAM 56A
56, IEC 56
STD IEC Motors
smallest Electric Motor
V18 big and V19 big
RAL 9006 (dark black)
without
without
105 mm
85 mm
70 mm
M 6 blind hole thread (metric)
56 mm
9 mm d x 20 mm long
Flange with a small ring and thread hole
Industrial electric motor
0,09 KW about 2800 rpm
0,06 KW about 1400 rpm
Two Phases the E Motor is running, that the motor to dies
For more information click here
IEC 56 B14 groß der Flanschmotor als Beispiel der kleinste Normmotor
This IEC motor is the smaller normalized motor, small enough to fit inside the terminal box of other bigger.
It works with 400/230 V tension. (single-phase)
The assembly of this motor needs a smooth surface. The flange should be close by a surface seal.
The axle has a seal, be sure that the seal is full hermetic, in general there is just one IP 55 Axle seal.
The flange can be easily change with the B5 flange, the difference is that B14 flange has screwed holes.
For More information click the Button please.
For special questions about your motors, don’t hesitate to ask us.
Small flange B14 Motor design (Flange mounted)
Here we are going to describe the small flange B14 motor of the IEC motor serial.
Through its mechanical explanation, we are going to see its different options.
Data sheet
EC 56 B14small flange motor
The Energy,
your Power to 50 Hz
2 poles about 2800 rpm
4 poles about 1400 rpm
The Energy,
your Power to 60 Hz
2 poles about 3360 rpm
4 poles about 1680 rpm
You looking for, you find it
Design
Name
Size
Category
IEC Position
Resemblance
Color
Dimensions
Front Foots
Lateral Foots
Dimensions
Exterior Flange
Circular Flange
Flange Centre Edge
Holes in the Flange
Shaft / Axle height
Dimensions Shaft
Special Features
Alternative Name
Power 2 poles
Power 4 poles
Warning
More Information ... Link
HTM Three Phase Electric Motor B14 small flange
CAM 56A
56, IEC 56
STD IEC Motors
smallest Electric Motor
V18s and V19s
RAL 9006 (dark black)
without
without
120 mm
100 mm
80 mm
7 mm
56 mm
9 mm d x 20 mm long
Flange without Ring (Face mounted)
Industrial electric motor
0,09 KW about 2800 rpm
0,06 KW about 1400 rpm
Two Phases the E Motor is running, that the motor to dies
For more information click here
IEC 56 Motor with little flange B14, as example of the smaller normalized motor.
This IEC motor is the smaller normalized motor, small enough to fit inside the terminal box of other biggers.
It works with 400/230 V tension. (single-phase)
The assembly of this motor needs a smooth surface. The flange should be close by a surface seal
The axle has a seal, be sure that the seal is full hermetic, in general there is just one IP 55 Axle seal.
The flang is not easy to change with the B5 model. the difference is that B14 flange has screwed holes
For More information click the Button please.
For special questions about your motors, don’t hesitate to ask us.
B35 Foot mounted and Flange mounted too, B3 the Foot mounted and B5 the Flange mounted, Foot - Flange Motor design
Data sheet
EC 56 B35 food mounted/holed flange
IEC 56 B3 foot mounted
EC 56 B5 holed flange motor
The Energy,
your Power to 50 Hz
2 poles about 2800 rpm
4 poles about 1400 rpm
The Energy,
your Power to 60 Hz
2 poles about 3360 rpm
4 poles about 1680 rpm
You looking for, you find it
Design
Name
Size
Category
IEC Position
Resemblance
Color
Dimensions
Front Foots
Lateral Foots
Dimensions
Exterior Flange
Circular Flange
Flange Centre Edge
Holes in the Flange
Shaft / Axle height
Dimensions Shaft
Special Features
Alternative Name
Power 2 poles
Power 4 poles
Warning
More Information ... Link
HTM Three Phase Electric Motor
B35 Motor with Foot and Flange Fixation
CAM 56A
56, IEC 56
STD IEC Motors
smallest Electric Motor
V15 and V16
RAL 9006 (dark black)
90 mm between axle holes
71 mm between axle holes
120 mm
100 mm
80 mm
7 mm
56 mm
9 mm d x 20 mm long
Foot and Flange with a big ring
Industrial electric motor
0,09 KW about 2800 rpm
0,06 KW about 1400 rpm
Two Phases the E Motor is running, that the motor to dies
For more information click here
B34b Foot mounted and Flange mounted too, B3 the Foot mounted and B14b the Flange mounted, Foot - Flange (B14 big) Motor design
Data sheet
EC 56 B34 food mounted/holed flange
IEC 56 B3 foot mounted
EC 56 B14 big flange
The Energy,
your Power to 50 Hz
2 poles about 2800 rpm
4 poles about 1400 rpm
The Energy,
your Power to 60 Hz
2 poles about 3360 rpm
4 poles about 1680 rpm
You looking for, you find it
Design
Name
Size
Category
IEC Position
Resamblence
Color
Dimensions
Front Foots
Lateral Foots
Dimensions
Exterior Flange
Circular Flange
Flange Centre Edge
Holes in the Flange
Shaft / Axle height
Dimensions Shaft
Special Features
Alternative Name
Power 2 poles
Power 4 poles
Warning
More Information ... Link
HTM Three Phase Electric Motor
B34b (big), electric motor with Feet and Flange Fixation
CAM 56A
56, IEC 56
STD IEC Motors
smallest Electric Motor
V18b and V19b
RAL 9006 (dark black)
90 mm between axle holes
71 mm between axle holes
105 mm
85 mm
70 mm
M 6 blind hole thread (metric)
56 mm
9 mm d x 20 mm long
Flange with small Ring
Industrial electric motor
0,09 KW about 2800 rpm
0,06 KW about 1400 rpm
Two Phases the E Motor is running, that the motor to dies
For more information click here
B34s Foot mounted and Flange mounted too, B3 the Foot mounted and B14s the Flange mounted, Foot - Flange (B14 small) Motor design
Data sheet
EC 56 B34 foot mounted/small flange motor
IEC 56 B3 foot mounted
EC 56 B34 mall flange
The Energy,
your Power to 50 Hz
2 poles about 2800 rpm
4 poles about 1400 rpm
The Energy,
your Power to 60 Hz
2 poles about 3360 rpm
4 poles about 1680 rpm
You looking for, you find it
Design
Name
Size
Category
IEC Position
Resemblance
Color
Dimensions
Front Foots
Lateral Foots
Dimensions
Exterior Flange
Circular Flange
Flange Centre Edge
Holes in the Flange
Shaft / Axle height
Dimensions Shaft
Special Features
Alternative Name
Power 2 poles
Power 4 poles
Warning
More Information
HTM Three Phase Electric Motor
B34s (small), electric motor with Feet and Flange (face mounted) Fixitation
CAM 56A
56, IEC 56
STD IEC Motors
smallest Electric Motor
V38s and V39s
RAL 9006 (dark black)
90 mm between axle holes
71 mm between axle holes
80 mm
65 mm
50 mm
M5 blind hole thread (metric)
56 mm
9 mm d x 20 mm long
Flange without Ring - face mounted and feet mounted
Industrial electric motor
0,09 KW about 2800 rpm
0,06 KW about 1400 rpm
Two Phases the E Motor is running, that the motor to dies
For more Information click here
... Nach oben - Seiten refresh ... Nach oben - Seiten refresh ... Nach oben - Seiten refresh ...
